Hydraulic butt fusion welding machine for PP-R, HDPE and PB pipes from 50 - 160 / 90 - 250 / 90 - 315 mm. 4,05 kW, heating plate up to 270 °C, 0-6,3 MPa hydraulic circuit.



Description

The MGF Tools HERCULES is a hydraulic butt fusion welding machine for joining plastic pressure pipes from 50 - 160 / 90 - 250 / 90 - 315 mm in diameter. It welds PP-R, HDPE and PB pipework, which makes it suitable for water mains, gas distribution and industrial pipe systems.

The machine runs on 220 V, 50/60 Hz and draws 4,05 kW in total: 2,1 kW for the heating plate, 1,2 kW for the facer and 0,75 kW for the hydraulic unit. The heating element reaches 270 °C and holds the set temperature within a tolerance of 5 °C, while the hydraulic circuit works over a pressure range of 0 - 6,3 MPa.

  • Welding diameter: 50 - 160 / 90 - 250 / 90 - 315 mm
  • Rated voltage: 220 V, 50/60 Hz
  • Rated power: 4,05 kW (heater 2,1 kW / facer 1,2 kW / hydraulic 0,75 kW)
  • Pressure range: 0 - 6,3 MPa
  • Maximum temperature: 270 °C, tolerance 5 °C or less
  • Applicable materials: PP-R, HDPE, PB

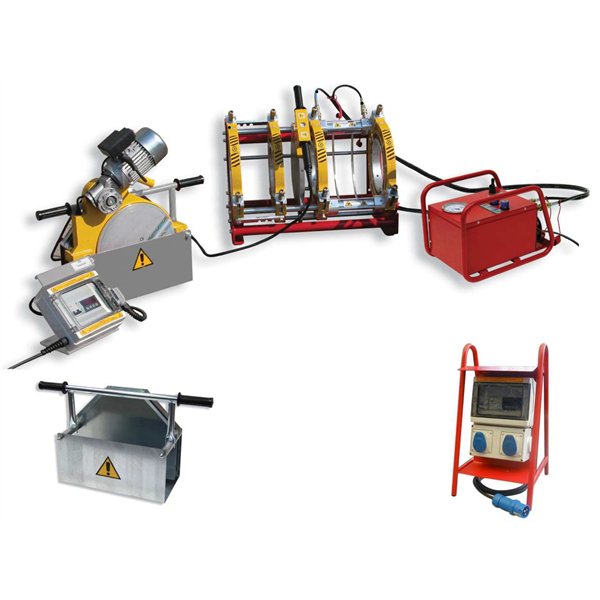

  • Supplied with machine, facer, heating plate, holder, hydraulic pump and clamp set
Data sheet
926055
Max diameter (mm)
315 mm
Min diameter (mm)
50
Power
4,05 kW
Pressure (max)
6,3 MPa
Standard equipment
1 machine, 1 facer, 1 heating plate, 1 holder, 1 hydraulic pump, 1 set of clamps
Temperature (max)
270 °C
Voltage
220 VAC - 50/60 Hz
Materials
PP-R, HDPE, PB
5,900.00 € -27.97%   4,249.77 € (tax incl.) 4,249.77 € (No Tax Included)
