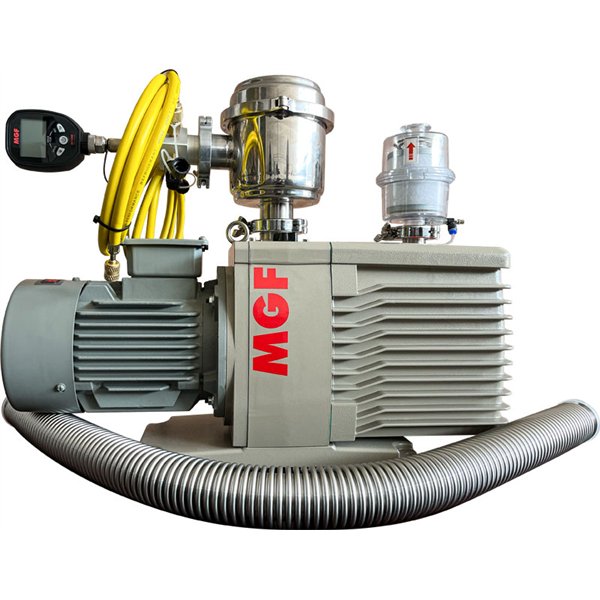

High Vacuum Two-Stage Pump – 540 L/min
Two-stage high-vacuum pump with 540 L/min flow rate. Supplied as a complete kit with KF25 and KF40 couplings, 3/8” four-way manifold, inlet filter, and a set of 2-meter R41/R32 hoses.
The 540 L/min high-vacuum two-stage pump is designed for applications requiring high suction capacity and fast vacuum generation. The two-stage design achieves deeper vacuum levels than single-stage pumps by recycling gas from the first to the second stage, increasing efficiency and operational stability.
The pump is supplied as a complete, ready-to-use kit with all accessories needed for immediate installation. The kit includes:
• KF25 filter coupling
• 3/8” four-way manifold
• KF40 filter coupling
• Inlet filter to block moisture and impurities
• Set of four 2-meter hoses compatible with R41 and R32 (3/8" – 5/16")
With a 540 L/min capacity, the pump is ideal for vacuum degassing systems, HVAC servicing and a range of industrial vacuum applications. The included accessories make it versatile and easy to integrate into different setups.
- Final vacuum
- 0,015 mbar
- Flow rate
- 540 L/min
- Input connection
- 1/4'' SAE
- Power
- 750 W
- Pressure gauge
- 50 mm
- Pumping stages
- 2
- Standard equipment
- Two stage Vacuum Air Pump with pressure gauge and with solenoid valve
- Tool size
- 332 x 129 x 242 mm
- Voltage
- 230V ~ 50/60Hz
- Weight (tool)
- 19 kg
- Oil volume
- 360 ml
