Klauke MINI40 Press Fitting Tool - Battery-Powered Klauke With Accessories

The MINI40 Battery-Powered Press Fitting Tool, manufactured by Klauke Germany, is designed for fast, accurate and effortless pressing of multilayer, copper, stainless steel and steel fittings up to 40 mm (system-dependent).

Powered by an 18 V / 3 Ah Li-Ion battery, the tool delivers a constant pressing force of approximately 19 kN and completes each press cycle in only 3–4 seconds, making it one of the fastest compact press tools available.

Its compact and lightweight design allows true one-handed operation, while the ergonomic bi-component handle ensures a secure and comfortable grip, even during long working periods. The 360° rotating head guarantees excellent maneuverability in tight or difficult installation spaces.

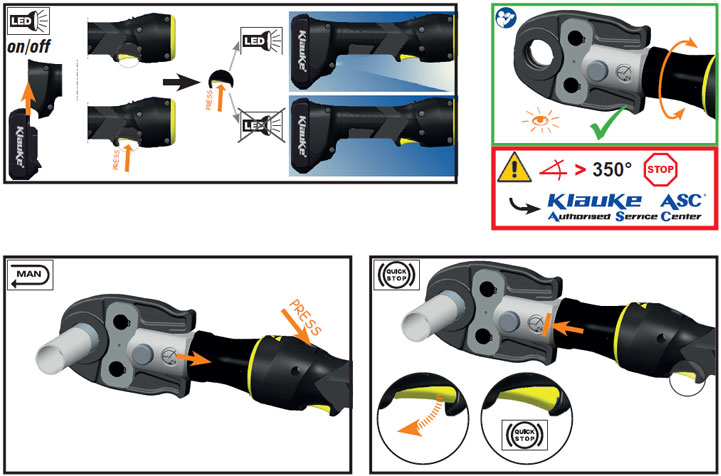

A powerful LED work light illuminates the press area, improving accuracy and safety. A multi-color LED indicator provides real-time information on press completion, battery status and tool readiness.

REFERENCE NUMBERS & MODEL CONFIGURATIONS

• 900979 – Base kit: tool + battery + charger + PVC case (no jaws or dies)

• 900979GM1 – MINI40 kit with M-profile jaws 15–18–22 mm

• 900979GM2 – MINI40 kit with M-profile jaws 15–22–28 mm

• 900979GT1 – MINI40 kit with TH-profile jaws 16–20–26 mm

• 900979GU1 – MINI40 kit with U-profile jaws 16–20–25 mm

• 900979GV1 – MINI40 kit with V-profile jaws 15–18–22 mm

• 900979GV2 – MINI40 kit with V-profile jaws 15–22–28 mm

Note: The included jaws and dies depend entirely on the selected model.

ADVANCED SAFETY & CONTROL

• QuickStop Protection
  If the tool detects a potential malfunction – such as incorrect fittings, wrong jaws, or an interrupted pressing cycle – the motor stops immediately when the trigger is released, allowing the operator to react quickly and correct the setup.

• Autostop Function
  After each press cycle, the tool switches off automatically to confirm the end of the process, reduce tool wear and extend battery life.

• Automatic piston return
  The automatic piston return speeds up repetitive pressing operations and improves overall workflow efficiency.

BATTERY TECHNOLOGY
The 18 V / 3 Ah Li-Ion battery offers long runtime and features an integrated LED charge-status indicator. Fast charging (around 60 minutes) keeps downtime low and productivity high.

WHY PROFESSIONALS CHOOSE THE MINI40

• Extremely compact, ideal for installations in tight spaces

• Lightweight design for fatigue-free operation

• Very fast 3–4 second pressing cycle

• 360° swivel head for maximum accessibility

• LED illumination of the work area for safe and precise pressing

• Multi-color LED status display for press confirmation and diagnostics

• QuickStop emergency shutdown for increased safety

• Autostop to increase tool and battery lifespan

• No gears in the force-multiplying system – no fragile components

• Excellent maneuverability for genuine one-handed operation

• Made in Germany, Klauke quality and reliability

• Wide choice of M, TH, U and V-profile jaw and die kits to match most systems

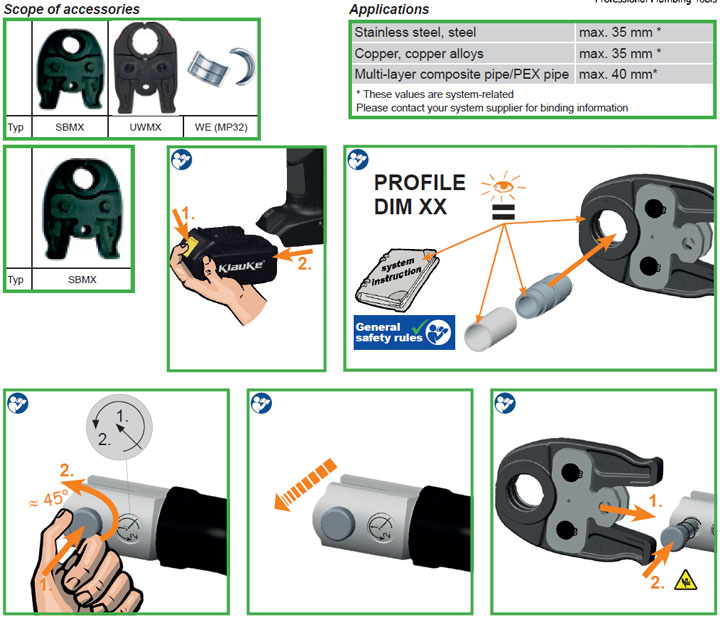

APPLICATIONS (System-Dependent Maximum Diameters)

• Stainless steel / Steel: up to 35 mm*

• Copper / Copper alloys: up to 35 mm*

• Multilayer composite / PEX: up to 40 mm*

*Values depend on the pipe system. Always consult the system supplier for confirmation.

STANDARD EQUIPMENT (INCLUDED SET)

• MINI40 Press Fitting Tool

• 18 V Li-Ion battery

• Battery charger

• Heavy-duty PVC case with protective foam

Jaw and die sets are only included in the respective model kits listed above.
